KISAN YANTRA Product Line

Modular agricultural robotics designed for farms of every scale

Home/Products
KISAN YANTRA Introduction
🔴 Live Operation
Prototype Ready - Operational

KISAN YANTRA

Precision XYZ Cartesian Farming System

Our flagship fixed-position precision agriculture system, designed for controlled environments. KISAN YANTRA delivers sub-millimeter accuracy for research facilities, greenhouses, and commercial farming operations. Currently operational at our founder's farm with proven results across 5 crop varieties.

20.24m² Coverage
2-3 People Fed Daily
30+ Crop Varieties
±0.5mm Precision
✓3-Axis CNC Precision Movement
✓UTM Tool Mounting System
✓Web App Dashboard
✓Soil Moisture Sensor
✓28+ Language Voice Control
✓REST API Integration
☀️Solar or Grid Powered
🌱100% Chemical-Free

⚡ Ultra-Low Energy Consumption

Only ~250 Wh/day — equivalent to running a laptop for 3-4 hours. Costs just ₹45/month (~$0.50) on grid power. Zero emissions with solar option.

Dimensions8800 × 2300 × 550mm
Repeatability±0.5mm
Power24V DC / 350W (Solar or Grid)
Energy Use~250 Wh/day (~₹45/month)
ToolsSeeder, Watering, Weeder, Soil Sensor, Camera
ConnectivityWiFi + Web App + REST API
Request Demo View Case Study

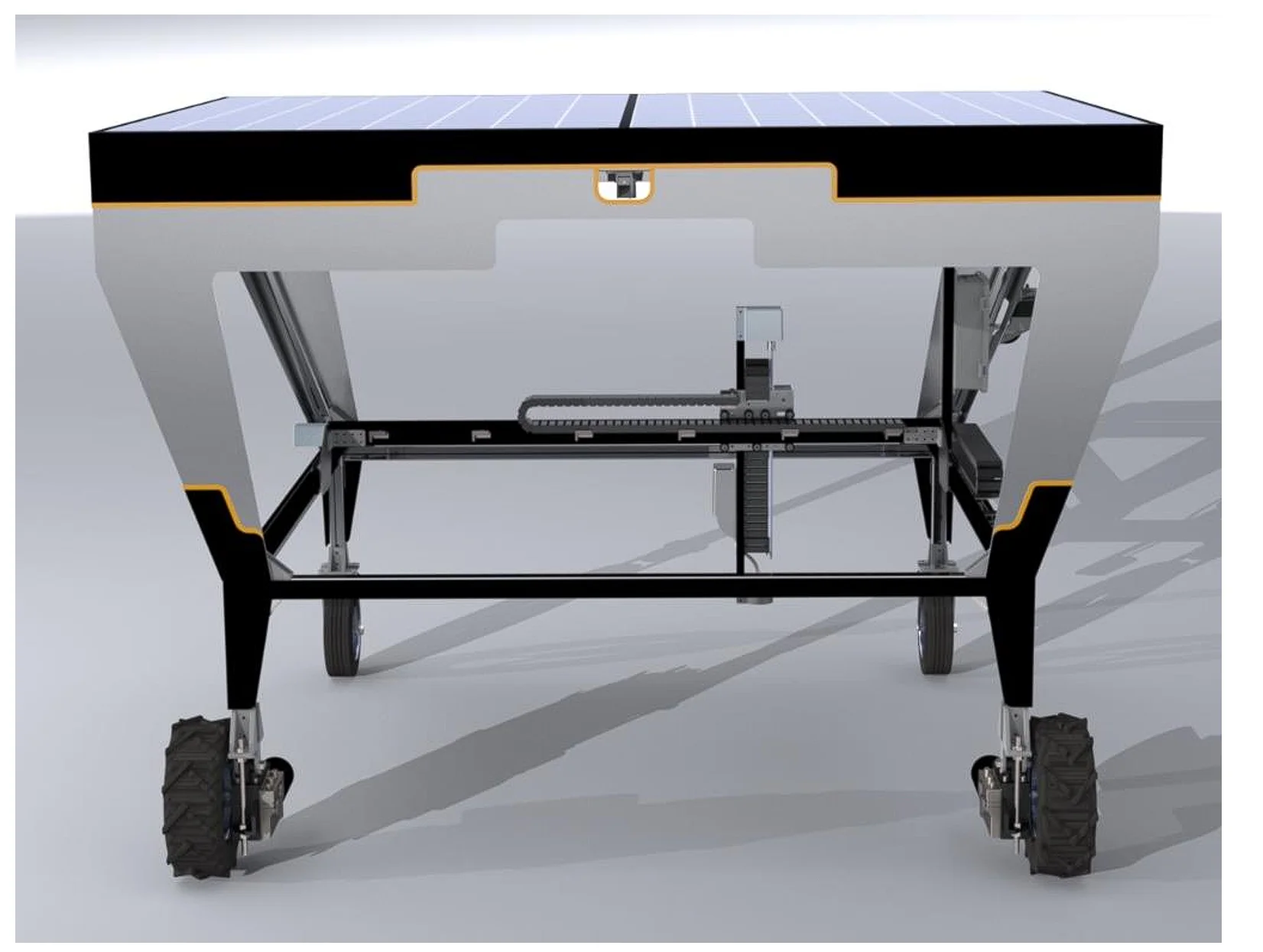

KISAN YANTRA MOBILE

Solar-Powered Mobile Farming Platform

Semi-autonomous wheeled platform combining mobility with precision farming. Deployable across multiple field locations with integrated solar charging for extended operation. Perfect for farmers who need flexibility across different growing areas.

2.5m Platform
500W Solar Panel
8hr Runtime
50kg Payload
☀️Solar-Powered Operation
🧭RTK GPS Navigation
🦾3-Axis Precision Arm
🛞All-Terrain Wheels
🔋48V LiFePO4 Battery
📡Remote Monitoring
🌡️Soil Sensor Array
📱Web App Control

☀️ Zero Operating Costs

100% solar-powered operation means zero electricity bills and zero carbon emissions. True sustainable farming.

Platform Size2500 × 1500 × 800mm
Work Area1.2m × 1.2m reach
Battery48V 100Ah LiFePO4
Speed0.5 - 2 km/h
Terrain Capability15° slope
ConnectivityWiFi + Web App + REST API
Express Interest Compare Products
KISAN YANTRA MOBILE
In Development - Q2 2026

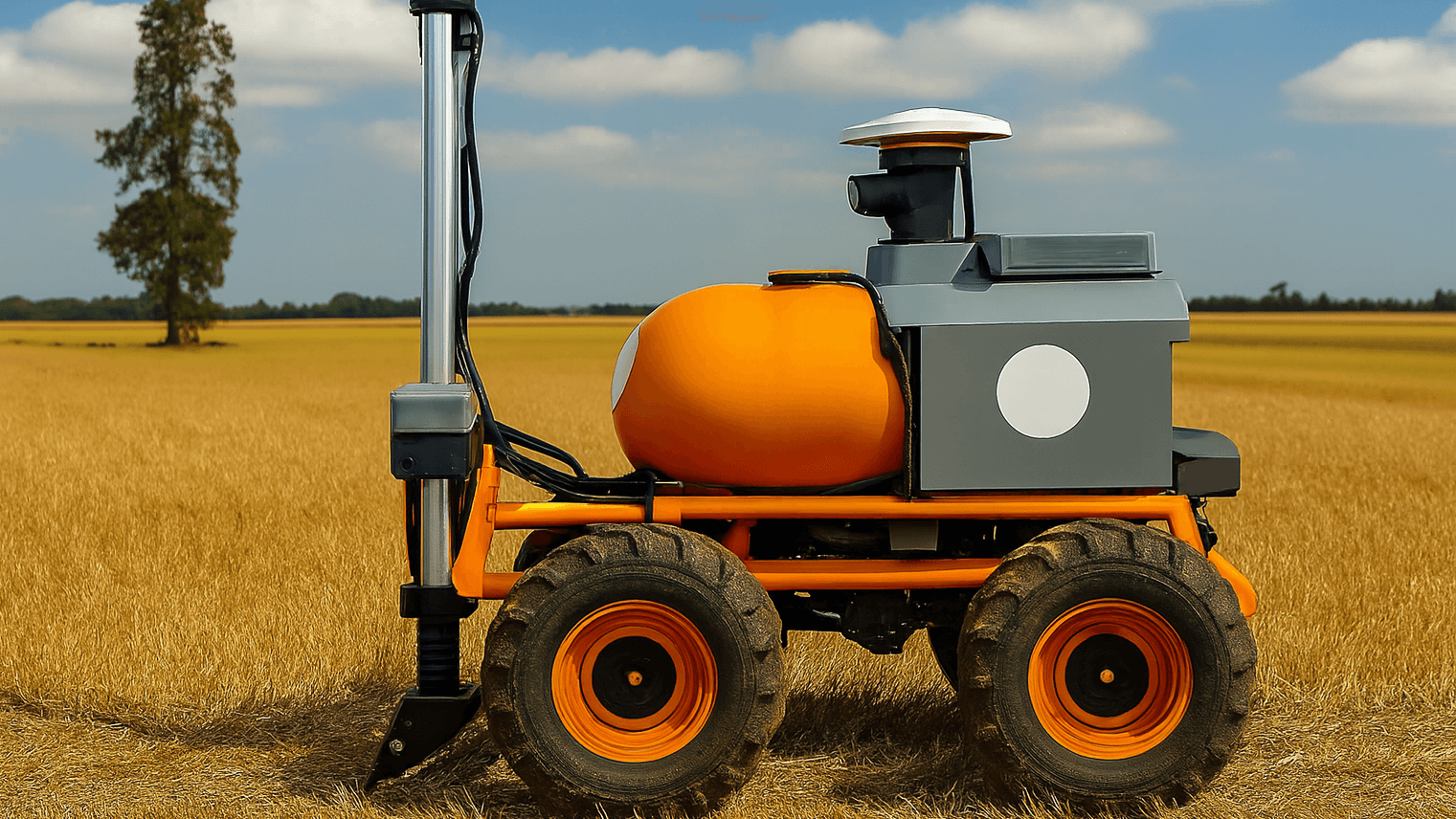

KISAN YANTRA ROVER
Planning Phase - 2027

KISAN YANTRA ROVER

Fully Autonomous Farm Robot

Enterprise-grade autonomous farming platform with advanced AI navigation. Designed for large-scale commercial operations with 24/7 capability across diverse terrain. The ultimate solution for industrial-scale precision agriculture.

5ha Daily Coverage
RTK GPS Precision
24/7 Operation
±2cm Accuracy
🤖Full Autonomy
👁️RTK GPS + Computer Vision
🦾6-DOF Robot Arm
🛤️Tracked Chassis
💻NVIDIA Jetson AGX
📊Stereo Vision + IMU
🌡️Multi-Sensor Array
📱Web App Fleet Management

⚡ Hybrid Power System

Solar + battery hybrid operation for extended field time. Designed for 50-90% labor reduction on large-scale farms.

Platform3000 × 2000 × 1200mm
Weight~250kg
GPS AccuracyRTK ±2cm
Speed0 - 5 km/h
Terrain30° slope, all-terrain
Connectivity4G/5G + WiFi + Web App + REST API
Express Interest Compare Products
Compare

Choose the Right Solution

Find the perfect KISAN YANTRA system for your farming needs

Feature KISAN YANTRA KISAN YANTRA MOBILE KISAN YANTRA ROVER
Status ● Operational ● In Development ● Planning
MobilityFixed PositionSemi-AutonomousFully Autonomous
Coverage Area20.24 m² (feeds 2-3 daily)Variable5 ha/day
Precision±0.5mm±5mm±2cm
Power SourceSolar or 24V DC Grid100% SolarSolar + Battery Hybrid
Energy Cost~₹45/month or Zero (Solar)Zero (Solar)Minimal (Hybrid)
Labor Reduction50-90%50-90%50-90%
Voice Control✓ 28+ Languages✓ 28+ Languages✓ 28+ Languages
Web App✓✓✓
Soil Sensor✓✓✓
Best ForGreenhouses, Research, HomeMulti-field FarmsLarge Commercial

Ready to Modernize Your Farm?

Schedule a free consultation to discuss which KISAN YANTRA solution is right for you.

Schedule Consultation
